SUS190 4:3 Series

Products

Industrial Panel PCs

Stainless Touch Panel PC

SUS190 4:3 Series

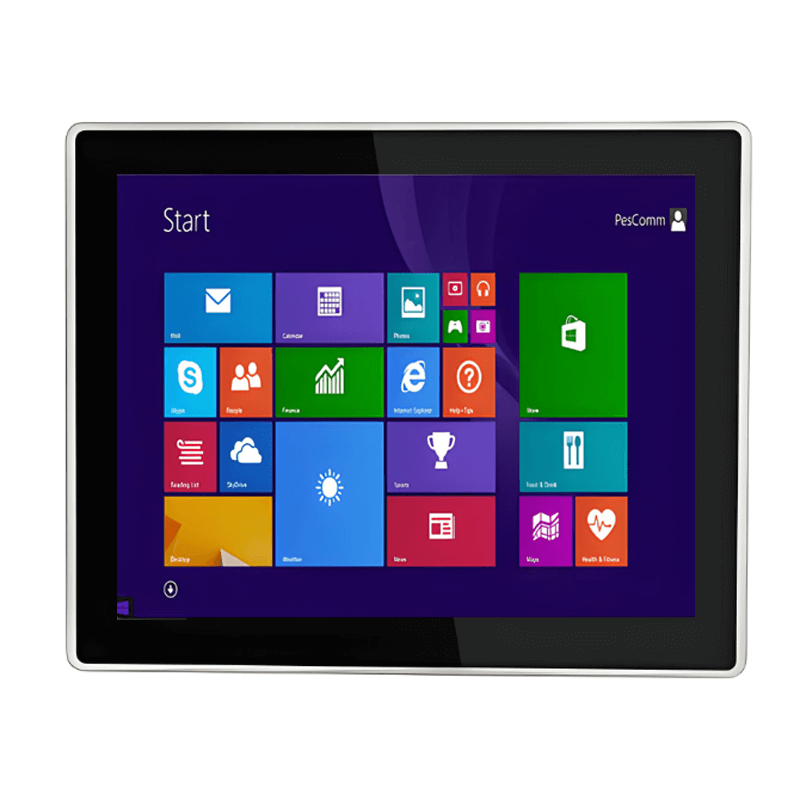

10.4"~19"inch Capacitive IP66 & IP69K-rated Stainless Steel Panel Computer

Datasheet (PDF)

10.4"~19"inch TFT LCD display with LED backlight

Stainless Steel SUS304 Chassis

Fanless design with Intel® Processor N-series

PCA-P Touch

IP66 & IP69K-rated

350nits Brightness，Upgradable to1200nits

Rich Expansion：3G/4G, WIFI, Blooth， RS232/RS422/RS485, GPIO Options

System Parameters
Processor&Chipset	Onboard Intel® Low TDP Series
Memory	1 x DDR3 /DDR4 SO-DIMM socket, 2GB/4GB/8GB/16GB
Storage	1 x 2.5" SATA 500GB/1TB/2TB 1 x Msata 16GB/32GB/64GB/128GB/256GB
Cooling System	Fanless design
BIOS	AMI 16MB DPI Flash
Watchdog Timer	255 level, 0~255 sec
LAN	1 x Realtek RT8111E, 10/100/1000M, Support PXE, Wake on Lan
Audio	Realtek ACL662 Audio controller, Line-out, Mic-in.
Expansion Port	2 x MINI PCI-E full slot, 1 x SIM
OS	Linux/ Win dows XP/7/8/10
Expansion Function
GPIO	Optional
3G/4G	Optional
WIFI/BT	Optional(802.11 a/b/g/n, Bluetooth 4.0)
RS422/485	Optional
Speaker	Optional
Degree of protection
Front Panel IP65	Default
Whole IP65	Optional
Display Parameters
LCD Size	10.4"~19" TFT (LED Backlight)
Resolution	800600/1024768/1280*1024
Brightness	350cd/m² (1200cd/m² optional)
Aspect ratio	4:3
Life Time	50,000hrs
Contrast Radio	(1000:1)
Response Time	2.5ms
Viewing Angle	89/89(U/D), 89/89(L/R)
Color Resolution	16.7M
Touch Screen Parameters
Touch Type	10 Points Capacitive Touch
Surface Hardness	6H>(Capacitive Touch)
Touch Validity:	>1,000,000
Resolution	4096*4096
Life Time	50,000hrs
Transparent Rate	>85%

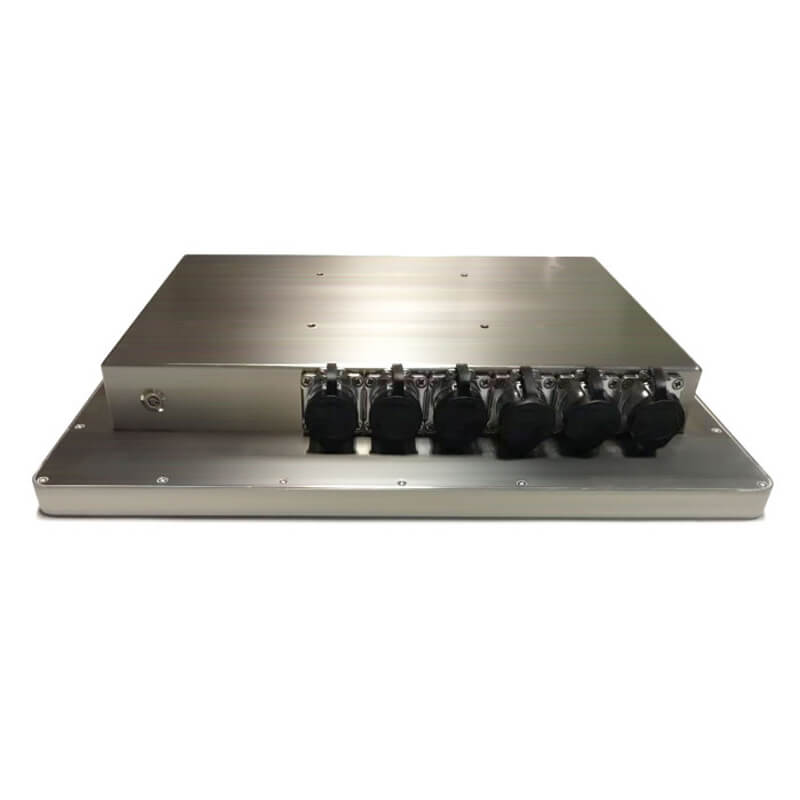

IO Interface
COM	2x COM(Default RS232, 6 maximum)
RS422/485	Optional (1x RS485/422)
USB	4 x USB2.0
LAN	1 x RJ45, 10/100/1000M (2LAN Optional)
Audio	Line-out, Mic-in
VGA	1x
HD MI	1x
Power Supply
Power Supply	12V Power Input
Power Comsuption	<60W
Wide Voltage	Optional (DC 6~36V Wide Voltage, IPTS )
Installation
VESA	75mm75mm/100mm100mm
Embedded	Cabinet Hole Size:
Environments
Operating Temp	-10℃~50℃
Storage Temp	-30℃~70℃
Relative Humidity	5~95%@10℃ (Non-condensing)
Vibration	5~500Hz,1.5G,0.15mm peak value
Shake	1.5 Grms, IEC 60068-2-64, 5 ~ 500 Hz, 1 hr/axis
Shock	10 Grems, IEC 60068-2-64, Half sine wave,for 11 ms
EMC	CE/FCC Class A
Enclosure
Housing Material	Stainless Chassis with fanless design
Dimensions	283 (W) x 203.5(D) x 68mm(H) / 393 (W) x 328.5 (D) x 67 mm (H)
Net Weight	4KG~8KG
